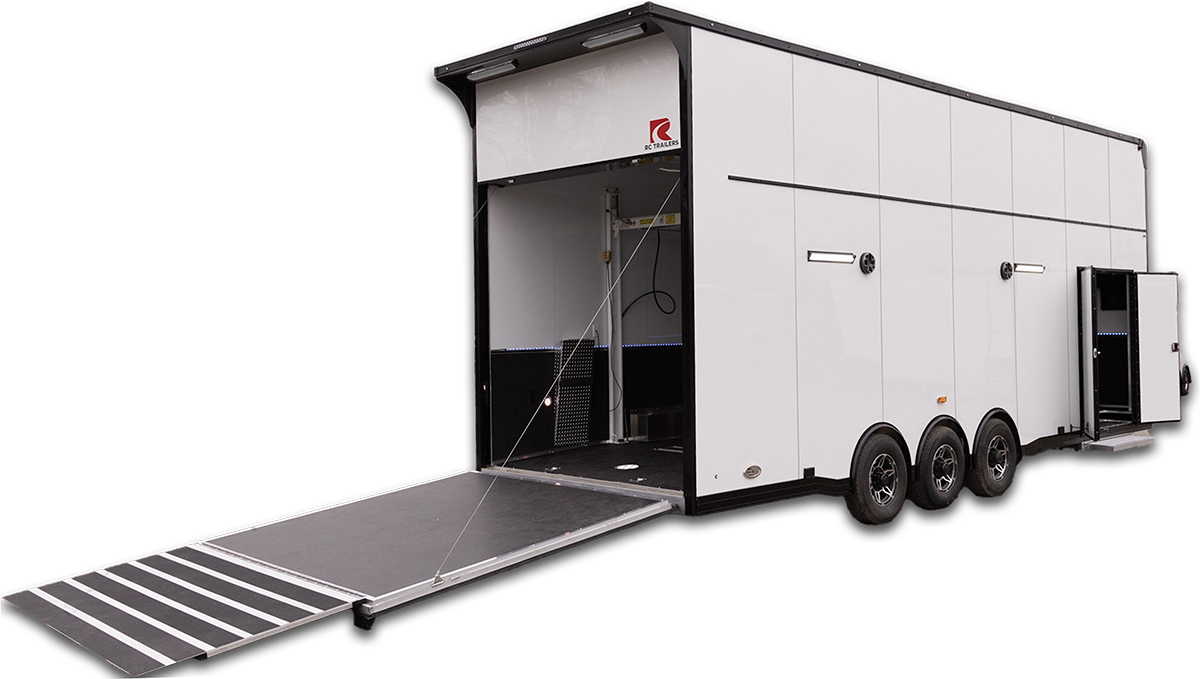

Race Steel Stacker

Race-Ready, Built to Win.

The Race Steel Stacker is the ultimate choice for racers and teams who demand strength and capacity. Built with rugged steel construction, this stacker trailer is designed to transport multiple vehicles and all your gear with ease. With unmatched durability and the ability to handle heavy loads, the Race Steel Stacker ensures you’ll always arrive at the track ready to dominate.

View Brochure

Download Brochure

Size & Axle Configurations


Race Series
	Steel Frame		Steel Frame				Aluminum Frame
	Steel Frame				Stacker		Aluminum Frame
	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN
8.5′ Wide TA2 — Tandem 3,500 lb. axles	12′-24′		12′-24′				18′-24′
8.5′ Wide TA3 — Tandem 5,200 lb. axles	12′-28′	22′-32′	12′-28′	22′-32′			18′-34′	24′-36′
8.5′ Wide TA4 — Tandem 6,000 lb. axles	12′-28′	22′-38′	12′-28′	22′-38′			18′-34′	24′-36′
8.5′ Wide TA5 — Tandem 7,000 lb. axles	12′-30′	22′-38	18′-30′	22′-38′			18′-34′	24′-36′
8.5′ Wide TA6 – Tandem 8,000 lb. axles	12′-30′	22′-38′	18′-30′	22′-38′			18′-34′	24′-36′
8.5′ Wide TR52 – Triple 5,200 lb. axles	18′-32′	28′-48′	18′-32′	28′-48′				36′-53′
8.5 Wide TR60 – Triple 6,000 lb. axles	18′-36′	28′-48′	18′-36′	28′-48′				36′-53′
8.5′ Wide TR70 – Triple 7,000 lb. axles	18′-36′	28′-53′	18′-36′	28′-53	30′-36′	40′-48′		36′-53′
8.5′ Wide TR80 — Triple 8,000 lb. axles	18′-36′	28′-53′	18′-36′	28′-53	30′-36′	40′-53′		36′-53′

Color

Extra Color Yellow

Extra Color Orange

Metal Polar White

Metal Dove Gray

Metal Cargo Green

Metal Brandywine

Metal Black

Metal Victory Red

Metallic Champagne Beige

Metallic Medium Charcoal

Metallic Silver Mist

Metallic Light Pewter

Metallic Indigo Blue

Dimensions


Race Series
	Steel Frame 8.5′ Wide		Steel Frame				Aluminum Frame 8.5′ Wide
	Steel Frame 8.5′ Wide		8.5′ Wide		Stacker 8.5′ Wide		Aluminum Frame 8.5′ Wide
	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN
Side Door	48″	48″	48″	48″	48″	48″	48″	48″
Hitch Height	18″-20″^**	TBD^***	18″-20″^**	TBD^***	18″-20″^**	TBD^***	18″-20″^**	TBD^***
Interior Height	78″	78″	78″	78″	78″	78″	78″	78″
Interior Width	97″	97″	97″	97″	97″	97″	97″	97″
Exterior Height	101″	101″	104″	104″	104″	104″	104″	104″
Rear Door Opening Height	75″	75″	75″	75″	75″	75″	75″	75″
Rear Door Opening Width	91″	91″	91″	91″	91″	91″	91″	91″

Standard Features & Specifications


Race Series
	Steel Frame 8.5′ Wide		Steel Frame				Aluminum Frame 8.5′ Wide
	Steel Frame 8.5′ Wide		8.5′ Wide		Stacker 8.5′ Wide		Aluminum Frame 8.5′ Wide
	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN
Hitch
2-5/16″ Coupler with Safety Chains	•		•		•		•
3rd Member Tongue on TA3 Axles and Greater	•		•		•		•
2,000 lb. Top Wind Jack with Sand Pad	•		•		•		•
Fifth Wheel – Adjustable Fifth Wheel Pin Box		•		•		•		•
Gooseneck – 2-5/16″ Adjustable Gooseneck Coupler		•		•		•		•
Hydraulic Sgl. Leg Tongue Jack with 12-Volt Battery & Box					•	•
Axle
Torsion Axles	•	•	•	•	•	•	•	•
Tires and Rims
ST205/75R15C Radial Tires on TA2 Axles	•		•				•
ST225/75R15D Radial Tires on TA3 Axles	•	•	•	•			•	•
White Wheels	•	•	•	•			•	•
TR70 Axle: ST235/80/R16E Radial Tires with White Wheels					•	•
TR80 Axle: ST235/75/R17.5H Radial Tires with Black Wheels					•	•
Frame
16″ on Center Floor, Walls and Roof	•	•	•	•	•	•	•	•
2″ x 5″ Tube Mains							•	•
Undercoated Frame	•	•	•	•	•	•
H-Beam Main Rails					•	•
NASCAR Hat Posts					•	•
Rear Bogey Wheels					•	•
2″ x 3″ Rear Corner Posts with Taillights in Door					•	•
Minimum Length for Standard 4′ Beavertail	18′	26′	18′	26′	18′	26′	18′	26′
Electrical
7-Way Plug	•	•	•	•	•	•	•	•
Breakaway Box, Battery & Switch	•	•	•	•	•	•	•	•
(3) Dome Lights with Switch	•	•	Deluxe	Deluxe	Deluxe	Deluxe	Deluxe	Deluxe
LED Clearance Lights, Surface Mounted, M5			•	•	•	•	•	•
LED Clearance Lights, Surface Mounted	•	•
LED Strip Tail/Brake Lights	•	•	•	•			•	•
Oval LED Tail Lights Recessed in Door					•	•
Interior
3/4″ Engineered Wood Flooring	•	•	•	•	•	•	•	•
3/8″ Plywood Walls	•	•	•	•			•	•
Optional No Charge 5.2mm Whiteboard Walls^* (Up to 18″ of extra height only)			•				•
Screwless White Aluminum Over 3/8″ Plywood					•	•
White Vinyl Insulated Ceiling	•	•	•	•	•	•	•	•
(4) D-Rings	•	•	•	•	•	•	•	•
78″ Interior Height	•	•	•	•			•	•
54″ Extra Height for 11′ Interior Height					•	•
Exterior
.030 Exterior Metal	.030	.030	.030	.030	.030	.030	.030	.030
ATP Stoneguard	•	•	•	•	•	•	•	•
Bull Nose Fiberglass Cap	•	•
Cast Aluminum Front Corner Caps			•	•			•	•
Polished Aluminum Front Corner Caps					•	•
Brite Wrap Between Front Corners	•	•	•	•	•	•	•	•
Brite Wrap Front Corners	•	•	•	•	•	•	•	•
Cast Rear Corners			•	•	•	•	•	•
Brite Rear Hoop			•	•	•	•	•	•
One Piece Aluminum Roof	•	•	•	•	•	•	•	•
Extruded Exterior Top Trim	3″	3″	6″	6″	6″	6″	6″	6″
3″ Lower Exterior Trim	•	•	•	•	•	•	•	•
(1) Non-Powered Roof Vent	•	•	•	•	N/A	N/A	•	•
Screwless Exterior with Drive Rivets on Seams					•	•
Walk on Roof (No Ladder) (No Roof Vent!)					•	•
Doors
48″ Barlock Door (with Step) Curb Side	•	•			•	•	•	•
48″ Double RV Door – Curbside			•	•
Beavertail Ramp Door	•	•
75″ Tall Ramp Door with Spring Assist			•	•	•	•	•	•
Recessed Camlocks in Ramp Door			•	•	•	•	•	•

Popular Options

Frame Options

Upgrade to 12″ On-Center NASCAR Hat Posts
Crossmembers – Additional for 12″ On-Center (Stacker or trailers w/H-Beam Frame)

Wheel Upgrades

Aluminum Mod or Series 14 Rim with Black Accents In Place Of White Wheel On LT235/80R16E
Aluminum Alcoa Wheel In Place Of Silver Steel Wheel On ST235/75R17.5H
Winch Assist for Doors Over 8′ Tall (Required!)
Includes 12″ Header, Winch, Snatch Block, and D-Ring Plate

Floor Coverings

ATP On Main Floor See Page 20 in the Options Section
Black or Gray Rubber Coin Pattern
Black or Gray Carpet
Extruded Aluminum Floor

E-Track

Horizontal
Vertical

Other

Car Platforms – Includes 3/4″ Advantech on Top – Floor Coverings Sold Separately
Aluminum Cabinets
Generator Options
Bathroom Packages
Roll Out Awnings
Car Lift Systems
Stereo Packages
Compressor & LP Options
Winch Options
