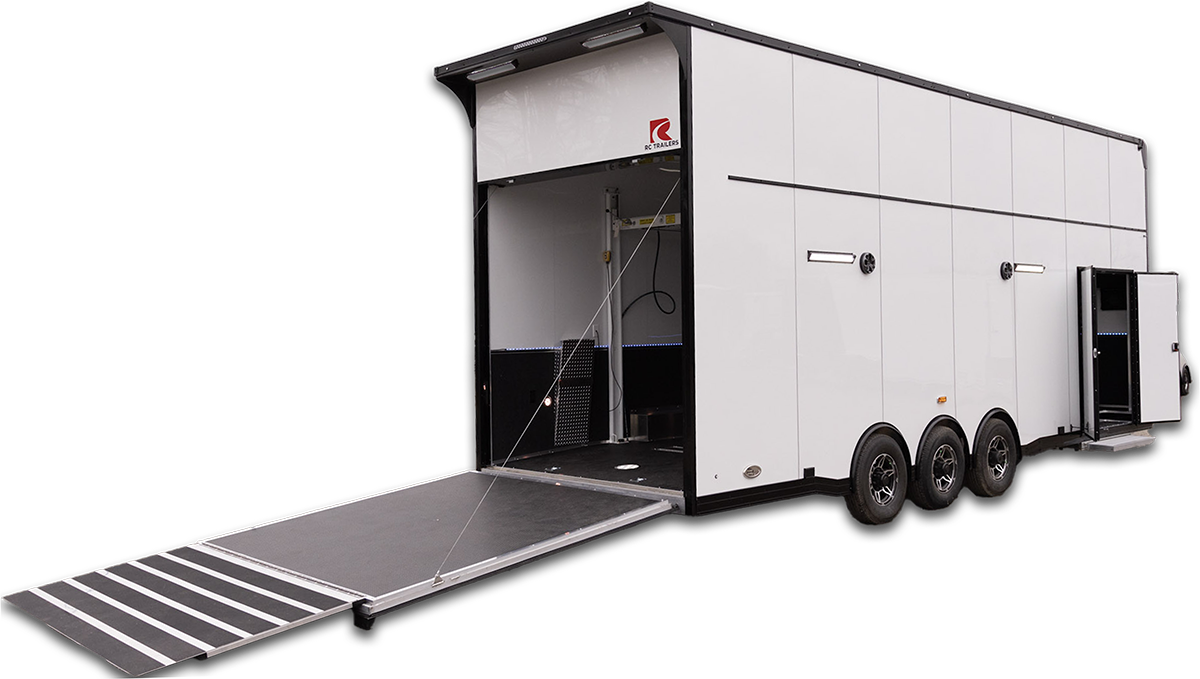

Race Aluminum Stacker
Race-Ready, Built to Win.
The Race Aluminum Stacker is the premier trailer for serious racers. Its lightweight, rust-resistant aluminum frame offers unparalleled durability and performance while reducing towing weight. Designed to carry multiple vehicles and equipment, the Race Aluminum Stacker delivers the ultimate combination of convenience, reliability, and style.
| Race Series | ||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Frame | Steel Frame | Aluminum Frame | ||||||
| Stacker | ||||||||
| TAG | FW/GN | TAG | FW/GN | TAG | FW/GN | TAG | FW/GN | |
| 8.5′ Wide TA2 — Tandem 3,500 lb. axles | 12′-24′ | 12′-24′ | 18′-24′ | |||||
| 8.5′ Wide TA3 — Tandem 5,200 lb. axles | 12′-28′ | 22′-32′ | 12′-28′ | 22′-32′ | 18′-34′ | 24′-36′ | ||
| 8.5′ Wide TA4 — Tandem 6,000 lb. axles | 12′-28′ | 22′-38′ | 12′-28′ | 22′-38′ | 18′-34′ | 24′-36′ | ||
| 8.5′ Wide TA5 — Tandem 7,000 lb. axles | 12′-30′ | 22′-38 | 18′-30′ | 22′-38′ | 18′-34′ | 24′-36′ | ||
| 8.5′ Wide TA6 – Tandem 8,000 lb. axles | 12′-30′ | 22′-38′ | 18′-30′ | 22′-38′ | 18′-34′ | 24′-36′ | ||
| 8.5′ Wide TR52 – Triple 5,200 lb. axles | 18′-32′ | 28′-48′ | 18′-32′ | 28′-48′ | 36′-53′ | |||
| 8.5 Wide TR60 – Triple 6,000 lb. axles | 18′-36′ | 28′-48′ | 18′-36′ | 28′-48′ | 36′-53′ | |||
| 8.5′ Wide TR70 – Triple 7,000 lb. axles | 18′-36′ | 28′-53′ | 18′-36′ | 28′-53 | 30′-36′ | 40′-48′ | 36′-53′ | |
| 8.5′ Wide TR80 — Triple 8,000 lb. axles | 18′-36′ | 28′-53′ | 18′-36′ | 28′-53 | 30′-36′ | 40′-53′ | 36′-53′ | |
Extra Color Yellow
Extra Color Orange
Metal Polar White
Metal Dove Gray
Metal Cargo Green
Metal Brandywine
Metal Black
Metal Victory Red
Metallic Champagne Beige
Metallic Medium Charcoal
Metallic Silver Mist
Metallic Light Pewter
Metallic Indigo Blue
| Race Series | ||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Frame 8.5′ Wide |
Steel Frame | Aluminum Frame 8.5′ Wide |
||||||
| 8.5′ Wide | Stacker 8.5′ Wide | |||||||
| TAG | FW/GN | TAG | FW/GN | TAG | FW/GN | TAG | FW/GN | |
| Side Door | 48″ | 48″ | 48″ | 48″ | 48″ | 48″ | 48″ | 48″ |
| Hitch Height | 18″-20″** | TBD*** | 18″-20″** | TBD*** | 18″-20″** | TBD*** | 18″-20″** | TBD*** |
| Interior Height | 78″ | 78″ | 78″ | 78″ | 78″ | 78″ | 78″ | 78″ |
| Interior Width | 97″ | 97″ | 97″ | 97″ | 97″ | 97″ | 97″ | 97″ |
| Exterior Height | 101″ | 101″ | 104″ | 104″ | 104″ | 104″ | 104″ | 104″ |
| Rear Door Opening Height | 75″ | 75″ | 75″ | 75″ | 75″ | 75″ | 75″ | 75″ |
| Rear Door Opening Width | 91″ | 91″ | 91″ | 91″ | 91″ | 91″ | 91″ | 91″ |
| Race Series | ||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Frame 8.5′ Wide |
Steel Frame | Aluminum Frame 8.5′ Wide |
||||||
| 8.5′ Wide | Stacker 8.5′ Wide | |||||||
| TAG | FW/GN | TAG | FW/GN | TAG | FW/GN | TAG | FW/GN | |
| Hitch | ||||||||
| 2-5/16″ Coupler with Safety Chains | • | • | • | • | ||||
| 3rd Member Tongue on TA3 Axles and Greater | • | • | • | • | ||||
| 2,000 lb. Top Wind Jack with Sand Pad | • | • | • | • | ||||
| Fifth Wheel – Adjustable Fifth Wheel Pin Box | • | • | • | • | ||||
| Gooseneck – 2-5/16″ Adjustable Gooseneck Coupler | • | • | • | • | ||||
| Hydraulic Sgl. Leg Tongue Jack with 12-Volt Battery & Box | • | • | ||||||
| Axle | ||||||||
| Torsion Axles | • | • | • | • | • | • | • | • |
| Tires and Rims | ||||||||
| ST205/75R15C Radial Tires on TA2 Axles | • | • | • | |||||
| ST225/75R15D Radial Tires on TA3 Axles | • | • | • | • | • | • | ||
| White Wheels | • | • | • | • | • | • | ||
| TR70 Axle: ST235/80/R16E Radial Tires with White Wheels | • | • | ||||||
| TR80 Axle: ST235/75/R17.5H Radial Tires with Black Wheels | • | • | ||||||
| Frame | ||||||||
| 16″ on Center Floor, Walls and Roof | • | • | • | • | • | • | • | • |
| 2″ x 5″ Tube Mains | • | • | ||||||
| Undercoated Frame | • | • | • | • | • | • | ||
| H-Beam Main Rails | • | • | ||||||
| NASCAR Hat Posts | • | • | ||||||
| Rear Bogey Wheels | • | • | ||||||
| 2″ x 3″ Rear Corner Posts with Taillights in Door | • | • | ||||||
| Minimum Length for Standard 4′ Beavertail | 18′ | 26′ | 18′ | 26′ | 18′ | 26′ | 18′ | 26′ |
| Electrical | ||||||||
| 7-Way Plug | • | • | • | • | • | • | • | • |
| Breakaway Box, Battery & Switch | • | • | • | • | • | • | • | • |
| (3) Dome Lights with Switch | • | • | Deluxe | Deluxe | Deluxe | Deluxe | Deluxe | Deluxe |
| LED Clearance Lights, Surface Mounted, M5 | • | • | • | • | • | • | ||
| LED Clearance Lights, Surface Mounted | • | • | ||||||
| LED Strip Tail/Brake Lights | • | • | • | • | • | • | ||
| Oval LED Tail Lights Recessed in Door | • | • | ||||||
| Interior | ||||||||
| 3/4″ Engineered Wood Flooring | • | • | • | • | • | • | • | • |
| 3/8″ Plywood Walls | • | • | • | • | • | • | ||
| Optional No Charge 5.2mm Whiteboard Walls* (Up to 18″ of extra height only) |
• | • | ||||||
| Screwless White Aluminum Over 3/8″ Plywood | • | • | ||||||
| White Vinyl Insulated Ceiling | • | • | • | • | • | • | • | • |
| (4) D-Rings | • | • | • | • | • | • | • | • |
| 78″ Interior Height | • | • | • | • | • | • | ||
| 54″ Extra Height for 11′ Interior Height | • | • | ||||||
| Exterior | ||||||||
| .030 Exterior Metal | .030 | .030 | .030 | .030 | .030 | .030 | .030 | .030 |
| ATP Stoneguard | • | • | • | • | • | • | • | • |
| Bull Nose Fiberglass Cap | • | • | ||||||
| Cast Aluminum Front Corner Caps | • | • | • | • | ||||
| Polished Aluminum Front Corner Caps | • | • | ||||||
| Brite Wrap Between Front Corners | • | • | • | • | • | • | • | • |
| Brite Wrap Front Corners | • | • | • | • | • | • | • | • |
| Cast Rear Corners | • | • | • | • | • | • | ||
| Brite Rear Hoop | • | • | • | • | • | • | ||
| One Piece Aluminum Roof | • | • | • | • | • | • | • | • |
| Extruded Exterior Top Trim | 3″ | 3″ | 6″ | 6″ | 6″ | 6″ | 6″ | 6″ |
| 3″ Lower Exterior Trim | • | • | • | • | • | • | • | • |
| (1) Non-Powered Roof Vent | • | • | • | • | N/A | N/A | • | • |
| Screwless Exterior with Drive Rivets on Seams | • | • | ||||||
| Walk on Roof (No Ladder) (No Roof Vent!) | • | • | ||||||
| Doors | ||||||||
| 48″ Barlock Door (with Step) Curb Side | • | • | • | • | • | • | ||
| 48″ Double RV Door – Curbside | • | • | ||||||
| Beavertail Ramp Door | • | • | ||||||
| 75″ Tall Ramp Door with Spring Assist | • | • | • | • | • | • | ||
| Recessed Camlocks in Ramp Door | • | • | • | • | • | • | ||
Frame Options
- Upgrade to 12″ On-Center NASCAR Hat Posts
- Crossmembers – Additional for 12″ On-Center (Stacker or trailers w/H-Beam Frame)
Wheel Upgrades
- Aluminum Mod or Series 14 Rim with Black Accents In Place Of White Wheel On LT235/80R16E
- Aluminum Alcoa Wheel In Place Of Silver Steel Wheel On ST235/75R17.5H
- Winch Assist for Doors Over 8′ Tall (Required!)
- Includes 12″ Header, Winch, Snatch Block, and D-Ring Plate
Floor Coverings
- ATP On Main Floor See Page 20 in the Options Section
- Black or Gray Rubber Coin Pattern
- Black or Gray Carpet
- Extruded Aluminum Floor
E-Track
- Horizontal
- Vertical
Other
- Car Platforms – Includes 3/4″ Advantech on Top – Floor Coverings Sold Separately
- Aluminum Cabinets
- Generator Options
- Bathroom Packages
- Roll Out Awnings
- Car Lift Systems
- Stereo Packages
- Compressor & LP Options
- Winch Options
