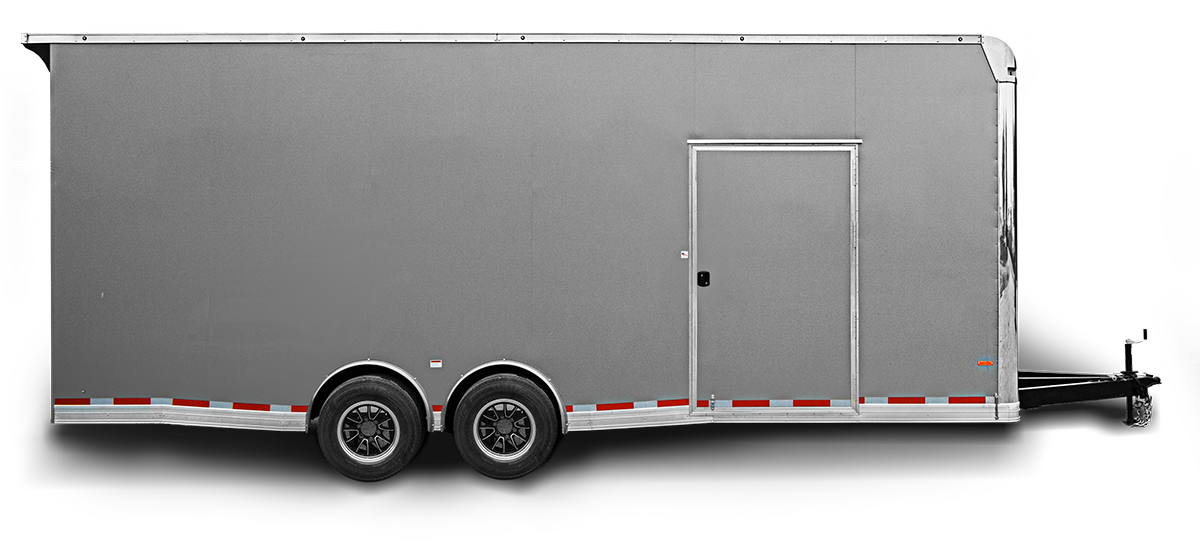

Race Aluminum Bumper Pull

Race-Ready, Built to Win.

The Race Aluminum Bumper Pull is lightweight, rust-resistant, and built for high performance. Perfect for racers and teams who need a sleek, dependable trailer, the aluminum design ensures reliability and style on every trip. Whether it’s for the track or beyond, the Race Aluminum Bumper Pull is race-ready.

View Brochure

Download Brochure

Size & Axle Configurations


Race Series
	Steel Frame		Steel Frame				Aluminum Frame
	Steel Frame				Stacker		Aluminum Frame
	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN
8.5′ Wide TA2 — Tandem 3,500 lb. axles	12′-24′		12′-24′				18′-24′
8.5′ Wide TA3 — Tandem 5,200 lb. axles	12′-28′	22′-32′	12′-28′	22′-32′			18′-34′	24′-36′
8.5′ Wide TA4 — Tandem 6,000 lb. axles	12′-28′	22′-38′	12′-28′	22′-38′			18′-34′	24′-36′
8.5′ Wide TA5 — Tandem 7,000 lb. axles	12′-30′	22′-38	18′-30′	22′-38′			18′-34′	24′-36′
8.5′ Wide TA6 – Tandem 8,000 lb. axles	12′-30′	22′-38′	18′-30′	22′-38′			18′-34′	24′-36′
8.5′ Wide TR52 – Triple 5,200 lb. axles	18′-32′	28′-48′	18′-32′	28′-48′				36′-53′
8.5 Wide TR60 – Triple 6,000 lb. axles	18′-36′	28′-48′	18′-36′	28′-48′				36′-53′
8.5′ Wide TR70 – Triple 7,000 lb. axles	18′-36′	28′-53′	18′-36′	28′-53	30′-36′	40′-48′		36′-53′
8.5′ Wide TR80 — Triple 8,000 lb. axles	18′-36′	28′-53′	18′-36′	28′-53	30′-36′	40′-53′		36′-53′

Color

Extra Color Yellow

Extra Color Orange

Metal Polar White

Metal Dove Gray

Metal Cargo Green

Metal Brandywine

Metal Black

Metal Victory Red

Metallic Champagne Beige

Metallic Medium Charcoal

Metallic Silver Mist

Metallic Light Pewter

Metallic Indigo Blue

Dimensions


Race Series
	Steel Frame 8.5′ Wide		Steel Frame				Aluminum Frame 8.5′ Wide
	Steel Frame 8.5′ Wide		8.5′ Wide		Stacker 8.5′ Wide		Aluminum Frame 8.5′ Wide
	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN
Side Door	48″	48″	48″	48″	48″	48″	48″	48″
Hitch Height	18″-20″^**	TBD^***	18″-20″^**	TBD^***	18″-20″^**	TBD^***	18″-20″^**	TBD^***
Interior Height	78″	78″	78″	78″	78″	78″	78″	78″
Interior Width	97″	97″	97″	97″	97″	97″	97″	97″
Exterior Height	101″	101″	104″	104″	104″	104″	104″	104″
Rear Door Opening Height	75″	75″	75″	75″	75″	75″	75″	75″
Rear Door Opening Width	91″	91″	91″	91″	91″	91″	91″	91″

Standard Features & Specifications


Race Series
	Steel Frame 8.5′ Wide		Steel Frame				Aluminum Frame 8.5′ Wide
	Steel Frame 8.5′ Wide		8.5′ Wide		Stacker 8.5′ Wide		Aluminum Frame 8.5′ Wide
	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN	TAG	FW/GN
Hitch
2-5/16″ Coupler with Safety Chains	•		•		•		•
3rd Member Tongue on TA3 Axles and Greater	•		•		•		•
2,000 lb. Top Wind Jack with Sand Pad	•		•		•		•
Fifth Wheel – Adjustable Fifth Wheel Pin Box		•		•		•		•
Gooseneck – 2-5/16″ Adjustable Gooseneck Coupler		•		•		•		•
Hydraulic Sgl. Leg Tongue Jack with 12-Volt Battery & Box					•	•
Axle
Torsion Axles	•	•	•	•	•	•	•	•
Tires and Rims
ST205/75R15C Radial Tires on TA2 Axles	•		•				•
ST225/75R15D Radial Tires on TA3 Axles	•	•	•	•			•	•
White Wheels	•	•	•	•			•	•
TR70 Axle: ST235/80/R16E Radial Tires with White Wheels					•	•
TR80 Axle: ST235/75/R17.5H Radial Tires with Black Wheels					•	•
Frame
16″ on Center Floor, Walls and Roof	•	•	•	•	•	•	•	•
2″ x 5″ Tube Mains							•	•
Undercoated Frame	•	•	•	•	•	•
H-Beam Main Rails					•	•
NASCAR Hat Posts					•	•
Rear Bogey Wheels					•	•
2″ x 3″ Rear Corner Posts with Taillights in Door					•	•
Minimum Length for Standard 4′ Beavertail	18′	26′	18′	26′	18′	26′	18′	26′
Electrical
7-Way Plug	•	•	•	•	•	•	•	•
Breakaway Box, Battery & Switch	•	•	•	•	•	•	•	•
(3) Dome Lights with Switch	•	•	Deluxe	Deluxe	Deluxe	Deluxe	Deluxe	Deluxe
LED Clearance Lights, Surface Mounted, M5			•	•	•	•	•	•
LED Clearance Lights, Surface Mounted	•	•
LED Strip Tail/Brake Lights	•	•	•	•			•	•
Oval LED Tail Lights Recessed in Door					•	•
Interior
3/4″ Engineered Wood Flooring	•	•	•	•	•	•	•	•
3/8″ Plywood Walls	•	•	•	•			•	•
Optional No Charge 5.2mm Whiteboard Walls^* (Up to 18″ of extra height only)			•				•
Screwless White Aluminum Over 3/8″ Plywood					•	•
White Vinyl Insulated Ceiling	•	•	•	•	•	•	•	•
(4) D-Rings	•	•	•	•	•	•	•	•
78″ Interior Height	•	•	•	•			•	•
54″ Extra Height for 11′ Interior Height					•	•
Exterior
.030 Exterior Metal	.030	.030	.030	.030	.030	.030	.030	.030
ATP Stoneguard	•	•	•	•	•	•	•	•
Bull Nose Fiberglass Cap	•	•
Cast Aluminum Front Corner Caps			•	•			•	•
Polished Aluminum Front Corner Caps					•	•
Brite Wrap Between Front Corners	•	•	•	•	•	•	•	•
Brite Wrap Front Corners	•	•	•	•	•	•	•	•
Cast Rear Corners			•	•	•	•	•	•
Brite Rear Hoop			•	•	•	•	•	•
One Piece Aluminum Roof	•	•	•	•	•	•	•	•
Extruded Exterior Top Trim	3″	3″	6″	6″	6″	6″	6″	6″
3″ Lower Exterior Trim	•	•	•	•	•	•	•	•
(1) Non-Powered Roof Vent	•	•	•	•	N/A	N/A	•	•
Screwless Exterior with Drive Rivets on Seams					•	•
Walk on Roof (No Ladder) (No Roof Vent!)					•	•
Doors
48″ Barlock Door (with Step) Curb Side	•	•			•	•	•	•
48″ Double RV Door – Curbside			•	•
Beavertail Ramp Door	•	•
75″ Tall Ramp Door with Spring Assist			•	•	•	•	•	•
Recessed Camlocks in Ramp Door			•	•	•	•	•	•
