Steel

Entry Level

Simple Strength, Built to Last.

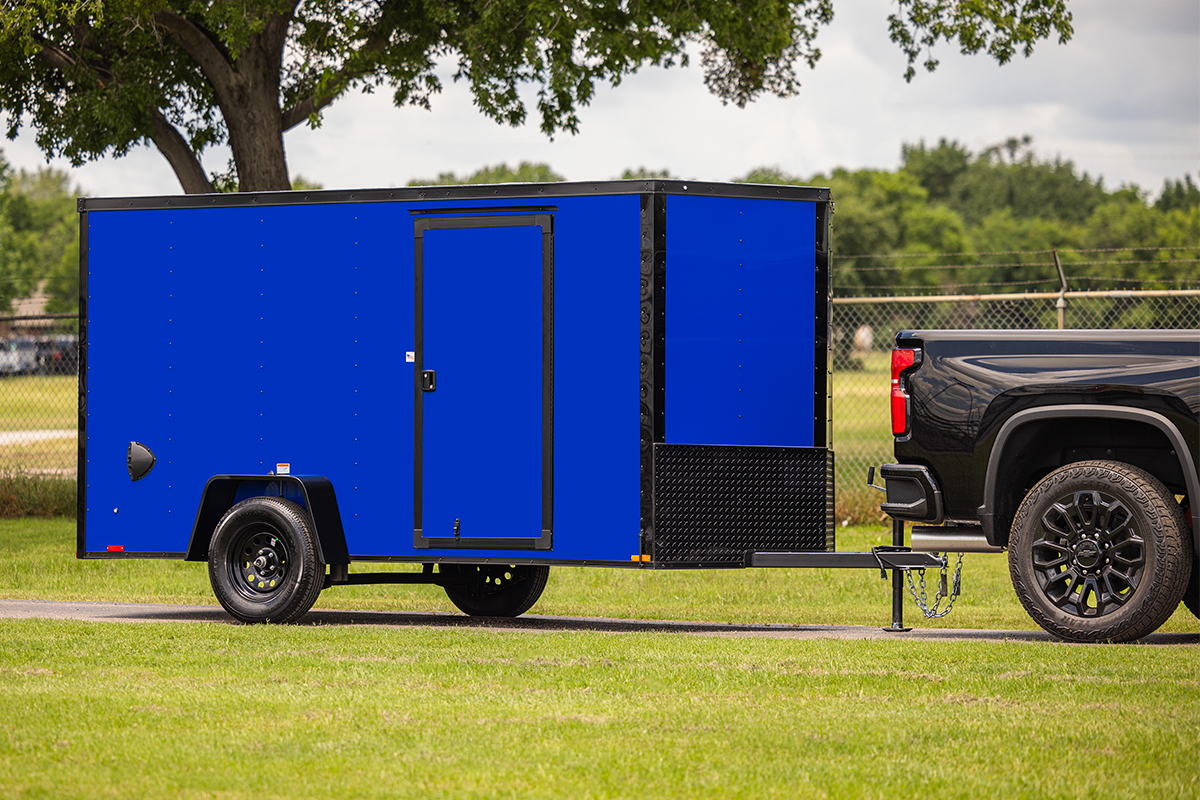

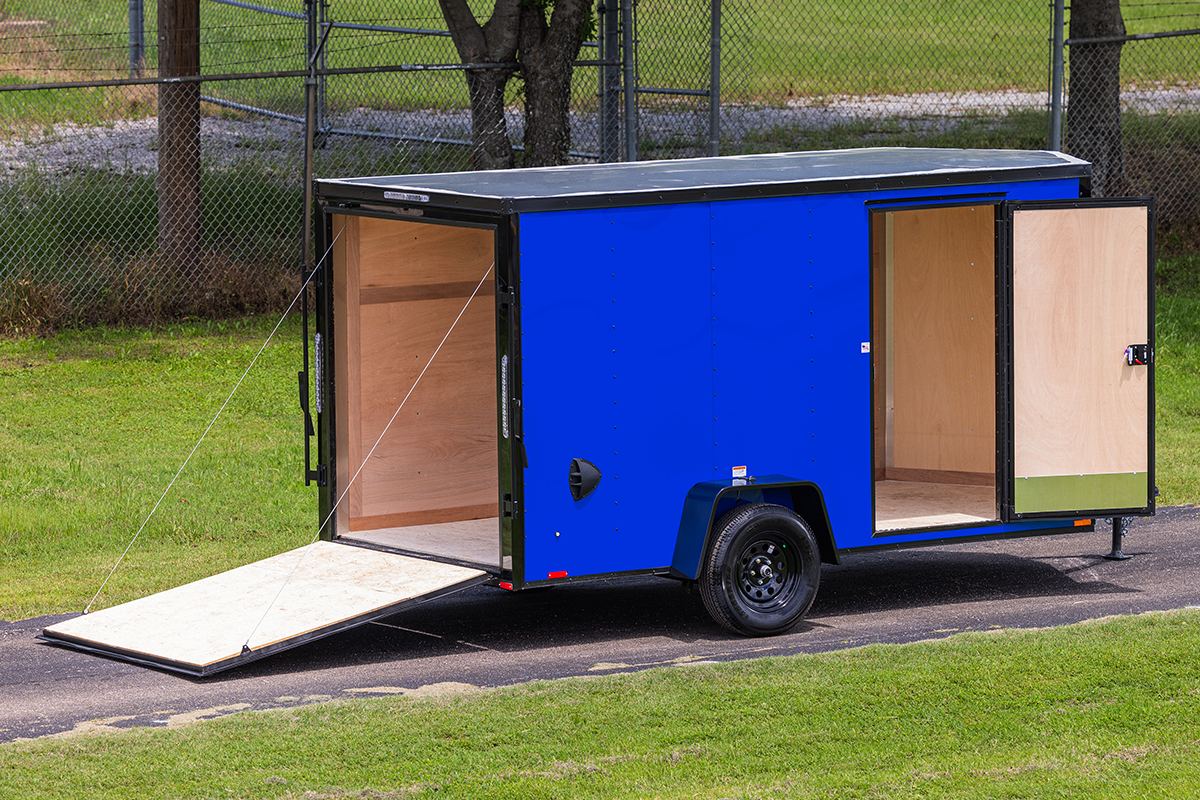

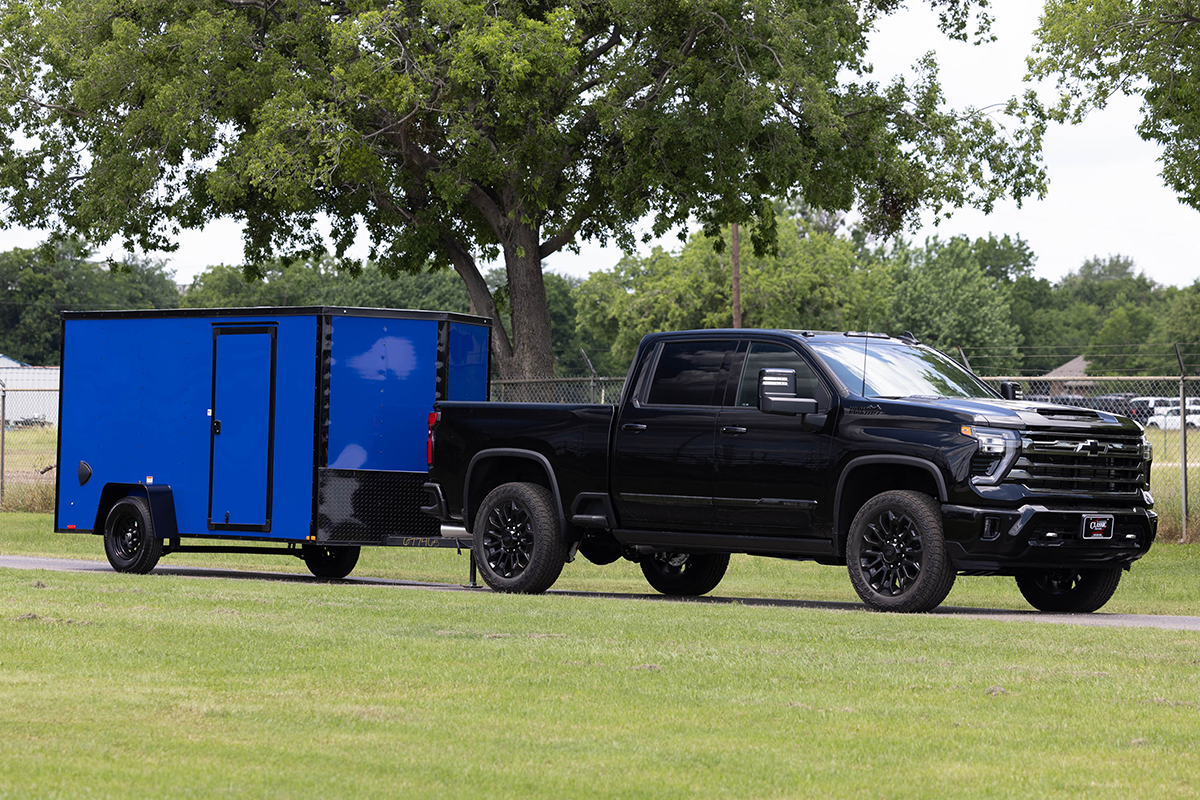

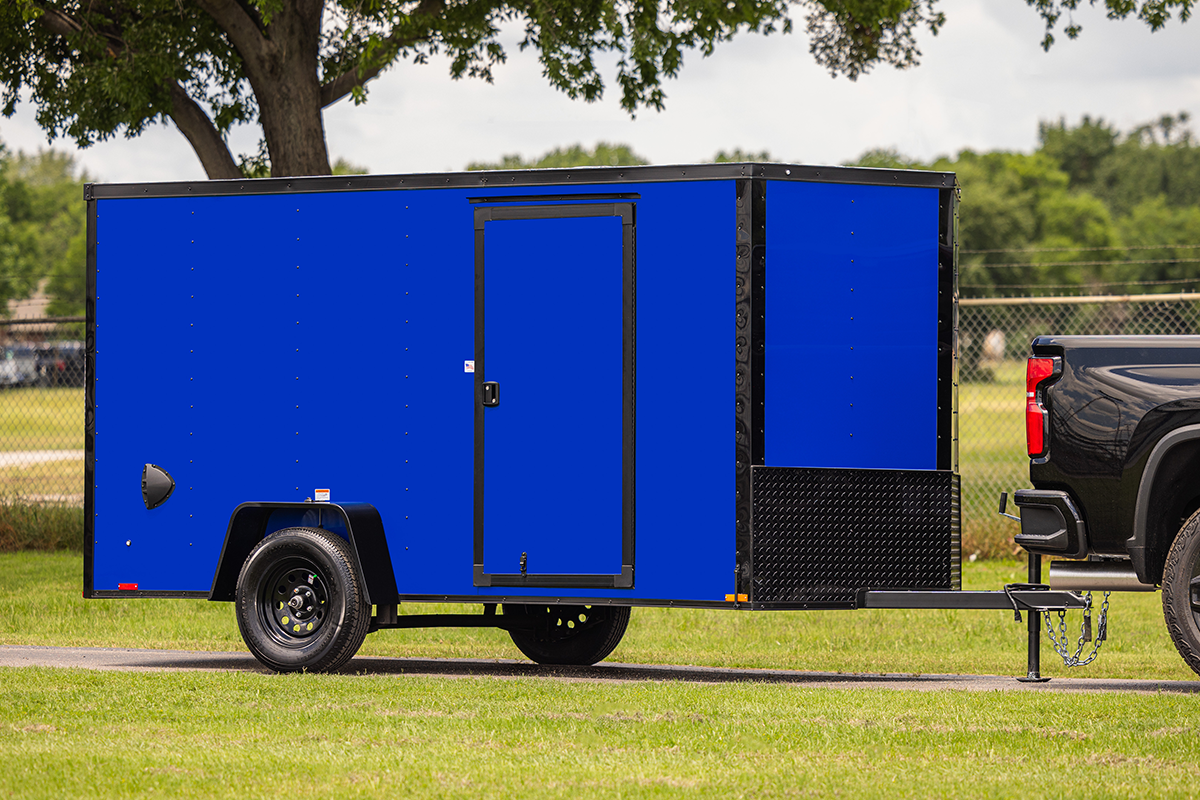

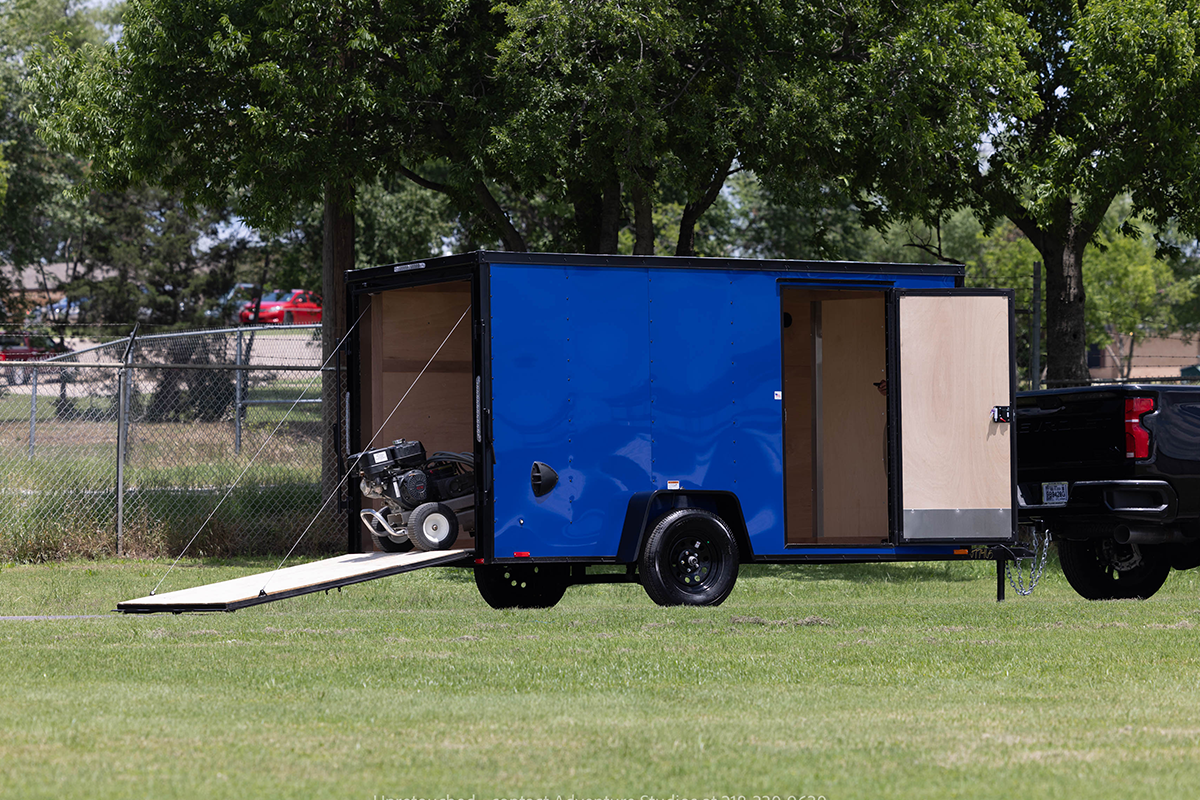

The Entry Level trailer is your go-to solution for tough, everyday tasks. Built with rugged steel construction, it delivers unmatched durability and resilience for those who value strength over frills. Whether it’s hauling tools, gear, or materials, the Entry Level Steel gets the job done with dependability and ease.

View Brochure

Download Brochure

Size & Axle Configurations


Steel Entry Level	Single Axle		Tandem Axle
	SA30	SAE35	TA35	TA52
	2,990 lb.	3,500 lb.	7,000 lb.	9,999 lb.
	4′ Wide
4 x 6′	•
4 x 8′	•
5′ Wide
5 x 8′	•	•
5 x 10′	•	•	•
5 x 12′	•	•	•
6′ Wide
6 x 8′	•	•	•	•
6 x 10′	•	•	•	•
6 x 12′	•	•	•	•
6 x 14′	•	•	•	•
7′ Wide
7 x 10′	•	•	•
7 x 12′	•	•	•
7 x 14′			•	•
7 x 16′			•	•
7 x 18′			•	•
7 x 20′			•	•
8.5′ Wide
8.5 x 14′			•	•
8.5 x 16′			•	•
8.5 x 18′			•	•
8.5 x 20′			•	•
8.5 x 22′			•	•
8.5 x 24′			•	•
8.5 x 26′				•
8.5 x 28′				•
8.5 x 30′				•
8.5 x 32′				•
8.5 x 34′				•

Color

Extra Color Yellow

Extra Color Orange

Metal Polar White

Metal Dove Gray

Metal Cargo Green

Metal Brandywine

Metal Black

Metal Victory Red

Metallic Champagne Beige

Metallic Medium Charcoal

Metallic Silver Mist

Metallic Light Pewter

Metallic Indigo Blue

Dimensions


Steel Entry Level
	5′	6′	7′	8.5′
	Wide	Wide	Wide	Wide
Hitch Height	17″	17″	18″	18″
Interior Height	64″	71″	71″	77″
Interior Width	57″	69″	81″	97″
Exterior Height	84″	91″	91″	99″
Exterior Width	80″	92″	103-1/2″	102″
Rear Door Opening Height	60″	66″	66″	72″
Rear Door Opening Width	50-3/4″	62-3/4″	74-3/4″	90-3/4″

Standard Features & Specifications


Steel Entry Level
	4′	5′	6′	7′	8.5′
	Wide	Wide	Wide	Wide	Wide
	Hitch
	2″ Coupler on Single Axles	•	•	•	•	•
2-5/16″ Coupler on Tandem Axles	•	•	•	•	•
2,000 lb. Top Wind Jack with Sand Pad	•	•	•	•	•
Safety Chains	•	•	•	•	•
Axles
SA Models – 2,900 lb. Spring Idler Axle	•
SA Models – 3,000 lb. Spring Idler Axle		•	•	•
SAE Models – 3,500 lb. Spring Brake Axle	•	•	•	•
TA2 Models – 3,500 lb. Spring Brake Axles	•	•	•	•	•
TA3 Models – 5,200 lb. Spring Brake Axle					•
Tires and Rims
ST205/75D15 Bias on 2,900 lb., 3,000 lb. and 3,500 lb. axles	•	•	•	•	•
ST225/75R15 Radial on 5,200 lb. Axles	•	•	•	•	•
White Wheels	•	•	•	•	•
Frame
24″ On Center Floor, Roof, and Walls Note: 16″ On-Center Floor with TA3 Axles and Up	•	•	•	•	•
18″ Wedge Nose	•	•	•	•	•
Undercoated Frame	•	•	•	•	•
Side Door – All Doors with NO Step
4′ Wide – No Side Door	•
24″ Door with Barlock on 8′ Long Models	•	•	•	•
32″ Door with Barlock		•	•
36″ Door with Barlock				•
36″ Door with Barlock on 16′ and Shorter Models					•
48″ Door with Barlock on 18′ and Longer Models					•
Rear Door
Single Door	•
Single Door – Double Door (1,000 lb. Light Duty Ramp Door)		•
Double Door (1,000 lb. Light Duty Ramp Door)			•	•
Double Door (3,000 lb. Ramp Door)					•
Interior
3/4″ Engineered Wood Flooring	•	•	•	•	•
3/8″ Plywood Walls Trimmed with Lauan	•	•	•	•	•
Height	4′	5′ 6″	6′	6′	6′ 6″
Exterior
Flow-Thru Sidewall Vents	•	•	•	•	•
.030 Exterior Metal	•	•	•	•	•
Inverted ATP Stoneguard	•	•	•	•	•
Galvanized Steel Roof	•	•	•	•	•
Mill Finish Rear Corners and Header	•	•	•	•	•
ATP Fenders	•	•	•	•	•
1-1/2″ Lower Trim	•	•	•	•	•
3″ Top Rail	•	•	•	•	•
Electrical
4-Way Plug on Idler Axles	•	•	•	•	•
7-Way Plug on Electric Brake Axles	•	•	•	•	•
Breakaway Box, Battery and Switch	•	•	•	•	•
12-Volt Dome Light	1	1	1	1	1
LED Strip Tail/Brake Lights, Surface Mounted	•	•	•	•	•
LED Clearance Lights, Surface Mounted	•	•	•	•	•
