Aluminum

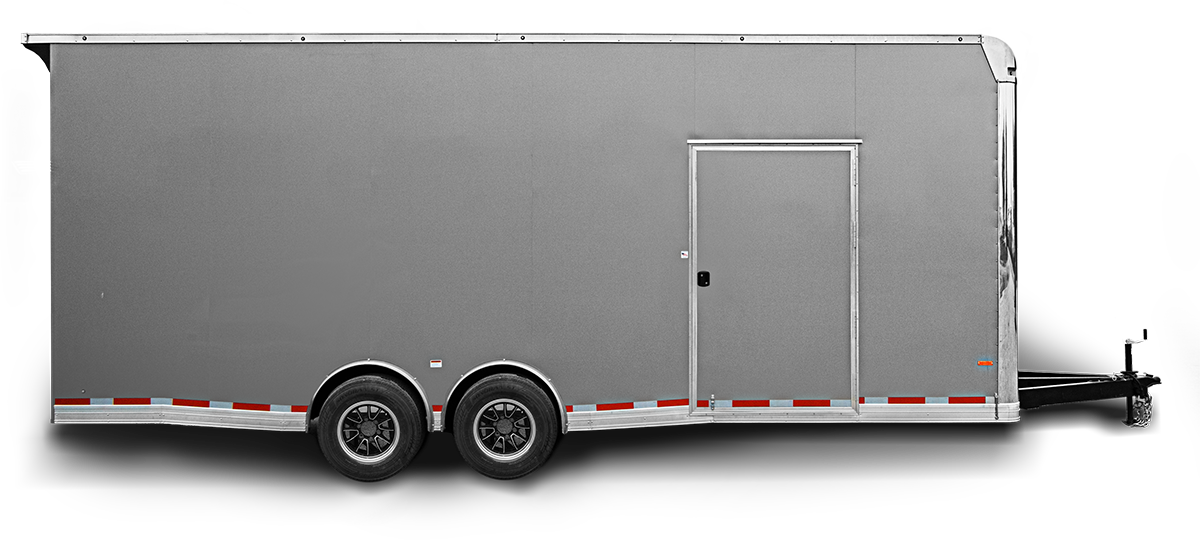

Heavy Duty Aluminum Bumper Pull

Strength, Style, and Superior Features

The Heavy Duty Aluminum Bumper Pull offers the best of both worlds: lightweight towing and superior durability. Perfect for those who need a sleek, easy-to-handle trailer that doesn’t sacrifice strength, the aluminum design resists rust and provides long-lasting performance. Every trip is smooth and reliable with the Heavy Duty Aluminum Bumper Pull.

View Brochure

Download Brochure

Size & Axle Configurations

Steel Frame
Axle	TA2		TA3		TA4		TA5		TA6		TR52		TR60		TR70		TR80
Coupler	BP	FW/GN	BP	FW/GN	BP	FW/GN	BP	FW/GN	BP	FW/GN	BP	FW/GN	BP	FW/GN	BP	FW/GN	BP	FW/GN
8.5 x 12′	•		•		•		•		•
8.5 x 14′	•		•		•		•		•
8.5 x 16′	•		•		•		•		•
8.5 x 18′	•		•		•		•		•		•		•		•		•
8.5 x 20′	•		•		•		•		•		•		•		•		•
8.5 x 22′	•		•	•	•	•	•	•	•	•	•		•		•		•
8.5 x 24′	•		•	•	•	•	•	•	•	•	•		•		•		•
8.5 x 26′			•	•	•	•	•	•	•	•	•		•		•		•
8.5 x 28′			•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
8.5 x 30′				•		•	•	•	•	•	•	•	•	•	•	•	•	•
8.5 x 32′				•		•		•		•	•	•	•	•	•	•	•	•
8.5 x 34′						•		•		•		•	•	•	•	•	•	•
8.5 x 36′						•		•		•		•	•	•	•	•	•	•
8.5 x 38′						•		•		•		•		•		•		•
8.5 x 40′												•		•		•		•
8.5 x 42′												•		•		•		•
8.5 x 44′												•		•		•		•
8.5 x 46′												•		•		•		•
8.5 x 48′												•		•		•		•
8.5 x 50′																•		•
8.5 x 52′																•		•
8.5 x 53′																•		•

Aluminum Frame
Axle	TA2	TA3	TA4	TA5	TA6	TR52	TR60	TR70	TR80
Coupler	BP	BP	BP	BP	BP	BP	BP	BP	BP
8.5 x 12′		•	•
8.5 x 14		•	•
8.5 x 16′		•	•
8.5 x 18′		•	•			•
8.5 x 20′		•	•			•
8.5 x 22′		•	•			•
8.5 x 24′		•	•			•
8.5 x 26′			•			•
8.5 x 28′			•			•
8.5 x 30′			•			•
8.5 x 32′			•			•
8.5 x 34′			•			•

Axle Information

Call Out	Axle Description	GVWR
TA2	Tandem 3,500 lb.	7,000 lb.
TA3	Tandem 5,200 lb.	9,900 lb.
TA4	Tandem 6,000 lb.	12,000 lb.
TA5	Tandem 7,000 lb.	14,000 lb.
TA6	Tandem 8,000 lb.	16,000 lb.
TR52	Triple 5,200 lb.	15,600 lb.
TR60	Triple 6,000 lb.	18,000 lb.
TR70	Triple 7,000 lb.	21,000 lb.
TR80	Triple 8,000 lb.	24,000 lb.

Color

Extra Color Yellow

Extra Color Orange

Metal Polar White

Metal Dove Gray

Metal Cargo Green

Metal Brandywine

Metal Black

Metal Victory Red

Metallic Champagne Beige

Metallic Medium Charcoal

Metallic Silver Mist

Metallic Light Pewter

Metallic Indigo Blue

Standard Features & Specifications


RTB Series Specifications	Steel Frame		Aluminum Frame
	TAG	FW/GN	TAG
	Hitch
	2-5/16″ Coupler with Safety Chains	•		•
	3rd Member Tongue on TA3 Axles and Greater	•		•
2,000 lb. Top Wind Jack w/Sand Pad	•		•
Fifth Wheel – Adjustable Fifth Wheel Pin Box		•
Gooseneck – 2-5/16″ Adjustable Gooseneck Coupler		•
Gooseneck – Short Bed Truck Requires 2″ Kingpin Sleeve		•
Axles
3,500 lb. Torsion Brake Axles on TA2 Models	•	N/A	•
5,200 lb. Torsion Brake Axles on TA3 Models	•	•	•
Tires and Rims
ST205/75R15C Radial Tires on TA2 Axles	•	N/A	•
ST225/75R15D Radial Tires on TA3 Axles	•	•	•
White Wheels	•	•	•
Frame
TA2 Models – Floor and Roof Frame Spacing	24″	N/A	16″
TA2 Models – Wall Frame Spacing	16″	N/A	16″
TA3 Models & up – Floor, Wall & Roof Frame Spacing	16″	16″	16″
3rd Member Tongue on TA3 or Greater Axles	•	N/A	•
Undercoated Frame	•	•	N/A
Doors
Double Rear Doors	•	•	•
For Trailers Less Than 18′ Long (24′ on FW/GN models) 32″ Camlock Door (with Step) on the Curb Side	•		•
For Trailers 18′ Long or Longer (26′ on FW/GN models) 48″ Camlock Door (with Step) on the Curb Side	•		•
Interior
3/4″ Engineered Wood Flooring	•	•	•
3/8″ Plywood Walls Trimmed with Lauan	•	•	•
Exterior
RTB Models Have a Flat Front and Roof with No Cap	•	•	•
.030 Exterior Metal	•	•	•
Aluminum Treadplate Stoneguard	•	•	•
Bright Front Aluminum Corners	•	•	•
One Piece Aluminum Roof	•	•	•
1-1/2″ Lower Trim	•	•	3″
3″ Lower Trim Standard on TA3 Axles and Up	•	•	•
Electrical
7-Way Plug	•		•
Breakaway Box, Battery, & Switch	•		•
(2) 12-Volt Dome Lights With Switch	•		•
LED Strip Tail Light/Brake Lights, Surface Mounted	•		•
LED 2″ Round, Recessed, Clearance Lights	•		•

* Rounded to the nearest inch
8.5′ Wide Approximate Dimensions^*	Steel TA2	Steel TA3	Aluminum TA2	Aluminum TA3
Side Door	32″ x 72″	32″ x 72″	32″ x 72″	32″ x 72″
Hitch Height	18″	19″	17″	18″
Interior Height	78″	78″	78″	78″
Interior Width	96″	96″	96″	96″
Exterior Height	100″	101″	100″	101″
Rear Door Opening Height	72″	72″	72″	72″
Rear Door Opening Width	91″	91″	91″	91″

Popular Options

Car Hauler Package – Ramp Door, Beavertail, (4) D-Rings & (1) Roof Vent ea.
5′ Wedge – Adds 5′ to the Box Length – Example: 8.5.×24 Becomes 8.5×29

Note: For floor and ceiling calculations, add 5 feet to the call size of the trailer to allow for the length of the wedge: Example for a 8.5′ x 10′ trailer, use 15′ for the floor and ceiling calculations.
